Tekelek Australia has a wide range of general electronic Evaporative spare parts. Have qualified technicians fix your cooler with our parts.
TEK 700 Series
Current Models
TEK7DAT (502-0156-02)
Digital/Analogue Thermostat
- Full graphic display
- Room temperature measurement, and optional display, on LCD
- Set level adjustment by use of “Up” and “Down” buttons
- Timer function providing delayed on/off operation
- Auto Cooling, Manual Cooling, and Fan operation
- Pre-wet control built-in
- Blue LED above on/off button to show operational even in standby.
- Analogue outputs to set cooler operating mode.
- Used with TEK7EC, TEK600 series & TEK400 series evaporative control.

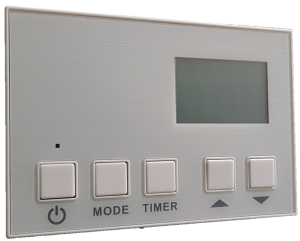

TEK7DT (502-0156-01)
Analogue Thermostat
- Full graphic display
- Room temperature measurement, and optional display, on LCD
- Set level adjustment by use of “Up” and “Down” buttons
- Timer function providing delayed on/off operation
- Auto Cooling, Manual Cooling, and Fan operation
- Pre-wet control built-in
- Blue LED above on/off button to show operational even in standby.
- Analogue outputs to set cooler operating mode.
- Used with TEK7EC & TEK400 series evaporative control.

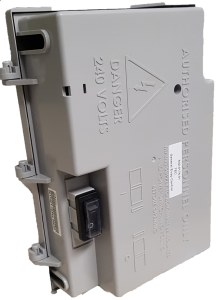

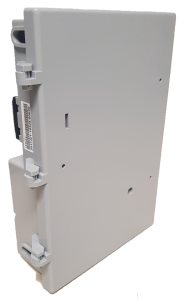

TEK7EC (502-0174-01)
Evaporative Cooler Control
- Evaporative cooler control to replace the TEK400 and TEK600 series
- Works with both digital (TEK616, TEK612) and analogue (TEK7DT, TEK425, TEK485) wall control (thermostat). Software allows it to determine output automatically

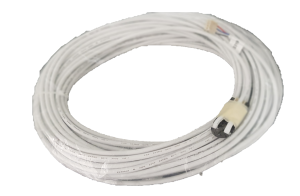

- Has both 4 pin and 5 pin connections (To use with either TEK400WL or TEK698 wire loom)
- Connection points for power cables for power and control of motors, pumps etc within the cooler are also provided.
- Allows for Single phase PSC Motor connections either with an integrated Start Capacitor or Motors requiring external Start Motor Capacitors.
- Dump function for applicable units with dump valves.
